SQOA is a high power optical amplifier with gain spectrum band within 1540 to 1565nm. It is mainly designed for the application of CATV or 1 to 31 continuous banding channels (ITU wavelength). It offers a highly reliable, flexible and low-cost solution for CATV large area coverage of metropolises and medium sized cities, that are high density home pass, especially for FTTH application.
SQOA adopts the world's top class pump laser and erbium ytterbium co-doped double-clad fiber. Perfect APC, ACC and ATC control, excellent design in the ventilation and heat-dissipation.

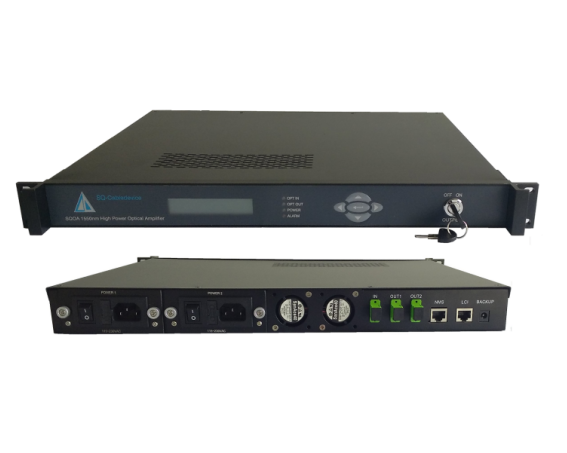

SQOA offers LCD & LED at the front panel with all work index of the equipment and warning alarms. The pump will be switched off automatically if optical power is missing, which offers security protection for the laser. RS-485 abd Ethernet ports offer local LCI and remote SNMP network management.
SQOA can be set to master or slave for redundancy architecture.
Features
l High output power, E-Y co-doped
l Hot backup, auto redundancy
l Support ITU channels banding
l Low optical input power
l Adjustable output optical power -3dB
l Perfect APC, ACC and ATC control
l Excellent ventilation and heat-dissipation.
l Low noise, high quality
l Double power supply, load sharing and redundant protection
l Ultra low power consumption
l 19 inch, 1RU box, compact size
Specifications
Item | Units | Value |
Wavelength Range | nm | 1540 - 1565 |
Spectral Flatness | dB | ± 0.5 |
Optical Input Power 1) | dBm | - 10 - + 10 |
Optical Output Power | dBm | 14, … , 32 @ 1 port (1dBm step) 33, … , 37 @ 2 ports (1dBm step) |
Optical Power Stability | dB | ± 0.2 |
Optical Power Adjustable Range | dB | - 3 (0.5dB step) |
Noise Figure 2) | dB | Max. 5.5 |
Pump Leakage Power | dBm | - 30 |
Optical Connector | - | SC / APC |
Optical Return Loss | dB | ≥ 50 |
Power Supply | VAC | 115 - 230 |
Power Consumption | W | < 60 |
Power Cord | - | Optional |
Dimensions (W x H x D) | mm | 483 x 45 x 388 |
Weight | kg | 3.4 |
Operating Temperature | °C | 0 - 55 |
Storage Temperature | °C | - 20 - 70 |
1) Nominal optical input power is +3dBm.
2) The test is at +3dBm optical input power and 1550nm wavelength.
3) Unless otherwise noted, all specifications reflect typical performance and are referenced to 20°C.
Ordering information
Description | Part Number |
SQOA 1550nm High Power Optical Amplifier, 14dBm, Europe power cord | 9915000001 |
SQOA 1550nm High Power Optical Amplifier, 15dBm, Europe power cord | 9915000002 |
SQOA 1550nm High Power Optical Amplifier, 16dBm, Europe power cord | 9915000003 |
SQOA 1550nm High Power Optical Amplifier, 17dBm, Europe power cord | 9915000004 |
SQOA 1550nm High Power Optical Amplifier, 18dBm, Europe power cord | 9915000005 |
SQOA 1550nm High Power Optical Amplifier, 19dBm, Europe power cord | 9915000006 |
SQOA 1550nm High Power Optical Amplifier, 20dBm, Europe power cord | 9915000007 |
SQOA 1550nm High Power Optical Amplifier, 21dBm, Europe power cord | 9915000008 |
SQOA 1550nm High Power Optical Amplifier, 22dBm, Europe power cord | 9915000009 |
SQOA 1550nm High Power Optical Amplifier, 23dBm, Europe power cord | 9915000010 |
SQOA 1550nm High Power Optical Amplifier, 24dBm, Europe power cord | 9915000011 |
SQOA 1550nm High Power Optical Amplifier, 25dBm, Europe power cord | 9915000012 |
SQOA 1550nm High Power Optical Amplifier, 26dBm, Europe power cord | 9915000013 |
SQOA 1550nm High Power Optical Amplifier, 27dBm, Europe power cord | 9915000014 |
SQOA 1550nm High Power Optical Amplifier, 28dBm, Europe power cord | 9915000015 |
SQOA 1550nm High Power Optical Amplifier, 29dBm, Europe power cord | 9915000016 |
SQOA 1550nm High Power Optical Amplifier, 30dBm, Europe power cord | 9915000017 |
SQOA 1550nm High Power Optical Amplifier, 31dBm, Europe power cord | 9915000018 |
SQOA 1550nm High Power Optical Amplifier, 32dBm, Europe power cord | 9915000019 |
SQOA 1550nm High Power Optical Amplifier, 33dBm, Europe power cord | 9915000020 |
SQOA 1550nm High Power Optical Amplifier, 34dBm, Europe power cord | 9915000021 |
SQOA 1550nm High Power Optical Amplifier, 35dBm, Europe power cord | 9915000022 |
SQOA 1550nm High Power Optical Amplifier, 36dBm, Europe power cord | 9915000023 |
SQOA 1550nm High Power Optical Amplifier, 37dBm, Europe power cord | 9915000024 |
