QF 1218-35B 射频放大器

询价

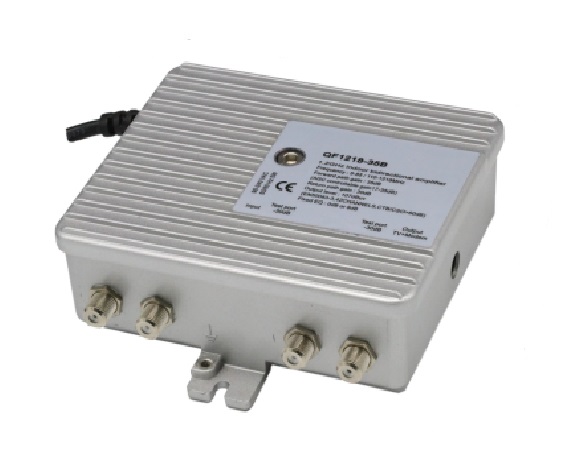

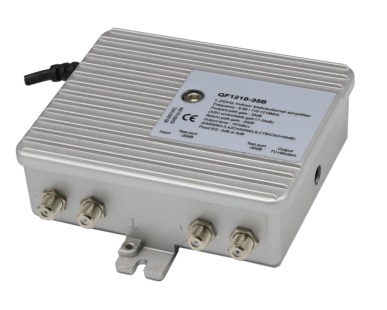

QF 1218-35B RF Amplifier is a 1.2 GHz bandwidth two-way amplifier. It provides excellent forward and reverse path performance combined with high reliability and a user-friendly layout. GaAs E-pHEMT Push Pull distribution amplifiers, that guarantees the excellent CTB and CSO performance.



Features

l Supports 1.2 GHz bandwidth

l Indoor bidirectional amplifier

l Compact design, small and exquisite

l Improved ESD and surge protection

l Low noise figure

l Standard JXP plug-in PADs for adjustments of attenuation and forward input equalization

l Plug-in DMC jumper for adjustments of forward interstage and reverse equalization

l Gain adjustment 0 - 18 dB (AGC)

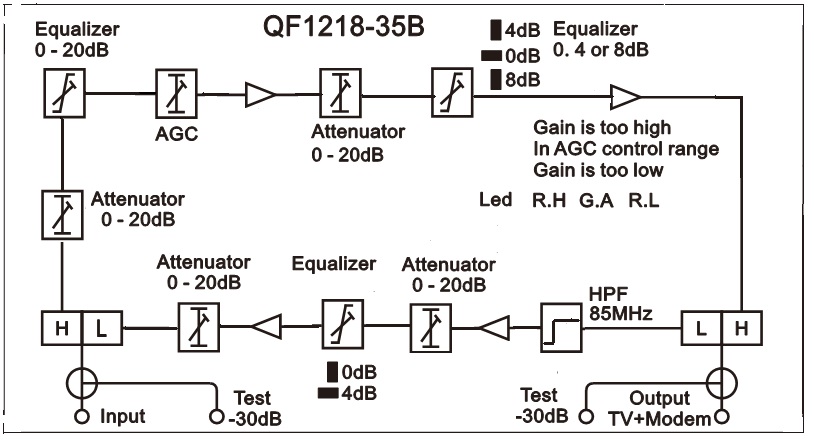

Block Diagrams



Specifications

Table 1. Forward Path Specifications

Item

Units

Value

Pass Band

MHz

110 ~ 1218

Gain

dB

35

Frequency Response

dB

± 1.0

Reference Output Level

(CENELEC 42 channel)

CSO: 60dB

CTB: 60dB

dBµV

107

Gain Adjustment

dB

0 - min.18 dB (AGC)

Input Equalizer Adjustable

dB

0…20 dB

1 dB step, Adjust via JXP PAD

Interstage Equalizer Adjustable

dB

0, 4, 8

Adjust via DMC Jumper

Return Loss

dB

16

RF Test Point

dB

- 30

Noise Figure

dB

≤7

Notes:

      1. Forward Gain and Noise Figure measured with 0 dB input EQ and 0 dB input pad.

      2. Distortion performance reference output level is 107 dBµV (CENELEC 42 channel,flat). Digital refers to 550 MHz to 1.2 GHz loading with QAM carriers at -6 dB relative to analog CW carrier levels.


Table 2. Return Path Specifications

Item

Units

Value

Pass Band

MHz

5 ~ 85

Gain

dB

30

Gain Control (Input & Output)



0..20 dB

1 dB step, Adjust via JXP PAD

Equalizer Adjustable

dB

0, 4

Adjust via DMC Jumper

Frequency Response

dB

± 1.0

Return Loss

dB

18

RF Test Point

dB

- 30

Noise Figure

dB

≤ 6


Table 3. General Specifications

Item

Units

Value

Power Consumption (High Gain / Low Gain)

W

≤5

Supply Voltage

V AC

26-65 V (remote PS) / 220 V (local PS)

RF Connectors

-

F - female, Imperial

Dimensions (W x H x D)

mm

105 x 125 x 50

Weight

kg

0,70

Mechanical Enclosure

-

IP 54 class protection, diecast housing

Operating Temperature

°C

- 40 - + 55

Storage Temperature

°C

- 40 - + 80

Relative Humidity Range

-

5% - 95%

Note: Unless otherwise noted, all specifications reflect typical performance and are referenced to 20°C.


Ordering Information

Description

Part Number

QF1218-35B RF Amplifier, 1.2G, 85/110, 60V

9920000033

QF1218-35B RF Amplifier, 1.2G, 85/110, 220V,Europe Plug

9920000034
